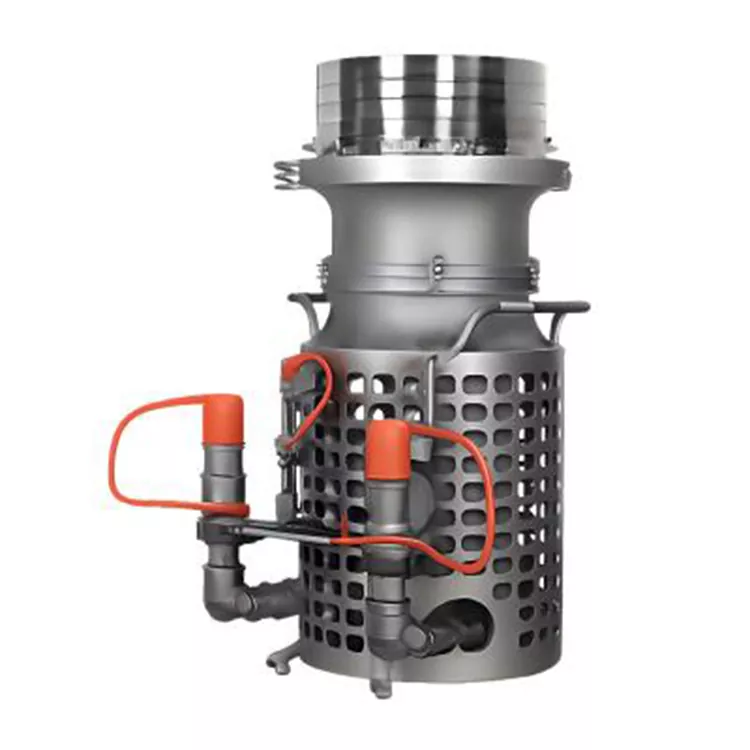

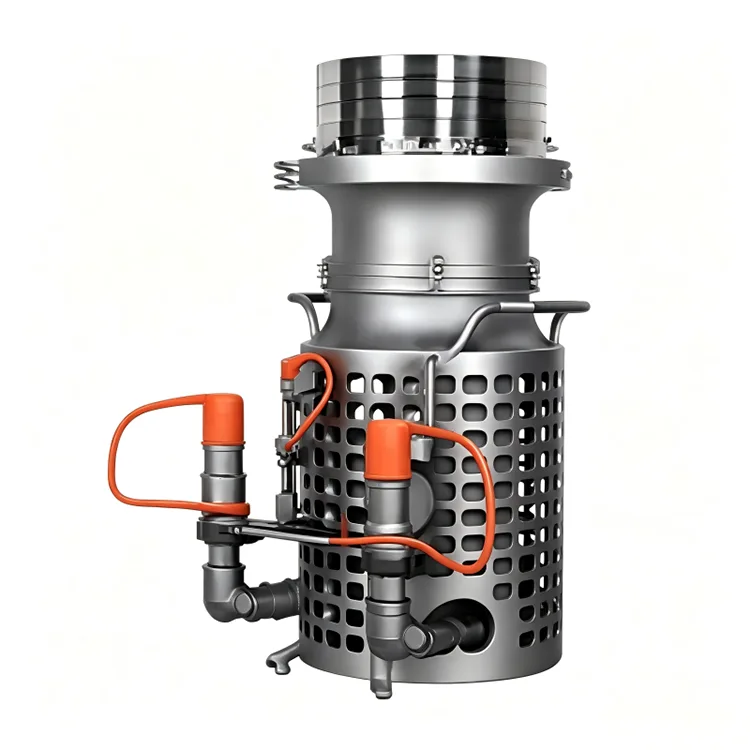

Impompo ye-Hydraulic Axial Flow

Impompo yokuHamba yeAxial eHaydraulic yoXolo lwaManzi eDolophini ngokuNgxamisekileyo kunye noLawulo lweZikhukula – 500m³/h uMjelo woMbhobho oPhezulu

Iimpawu eziphambili kunye nezinto eziluncedo

• Umthamo wokuhamba okuphezulu ukuya kuma-500m³/h
• Uyilo lwentloko ephantsi olufanelekileyo kwiimeko zamanzi angekho nzulu
• Inkqubo eqhutywa ngeHydraulic yosetyenziso olungxamisekileyo lweselula
• Uqhagamshelo olukhawulezayo kunye neeyunithi zamandla oxinzelelo lwe-hydraulic
• Ubume obubambeneyo bokusasazwa kwentsimi
• Uyilo olungagugiyo ekusebenzeni ixesha elide
• Ifanele indawo enzima kunye nobunzima

IiNgcaciso zobuGcisa

● Ubuninzi bomthamo wokuhamba: ngaphezu kwe-500 m³/h

● Intloko enkulu: ukuya kwi-32 m, eyenza ukuphendula ngokukhawuleza kwiimeko ezahlukeneyo

● Uluhlu lokuhamba kwe-hydraulic: 40-100 Lpm

● Ubukhulu bokuphuma: DN200

● Ukukwazi ukudlula amaqhekeza aqinileyo ukuya kwi-30 mm, kunye nomthamo ogqwesileyo wokudlula

Isikhokelo soKhetho

Kumanzi asedolophini anobunzulu bamanzi <2m kunye nommandla omkhulu okhukulisekileyo → khetha imodeli yethu ye-500m³/h yokutsala ngokukhawuleza

Xa ugalela amanzi emlanjeni ngobude bonyuso > 15m → sicebisa ukudibanisa neyunithi yamandla oxinzelelo oluphezulu olwenziwa ngamanzi (bonana neenjineli zethu ukuze zithelekise)

Ukucoca indawo yolwakhiwo ngobutyobo obugcwele amanzi → qinisekisa ukuba izinto eziqinileyo ezidlula umthamo (≤30mm) ziyahlangabezana neemeko zesiza sakho

Usetyenziso

Ulawulo lwezandyondyo zasezidolophini kunye nokuzaliswa kwamanzi okungxamisekileyo

Ukucocwa komlambo kunye nomjelo wamanzi

Itonela kunye nokususwa kwamanzi kwindawo engaphantsi komhlaba

Ukususwa kwamanzi kwindawo yokwakha

Imisebenzi yokuhlangula kwiintlekele ezingxamisekileyo

Ukunkcenkceshela kwezolimo kunye nenkxaso yokuhambisa amanzi

FAQ

Q1:Ngowuphi umgangatho wamanzi omncinane ofunekayo ukuze le mpompo isebenze ngokufanelekileyo?

A: Impompo yethu yehydraulic axial flow pump inokusebenza kubuncinci ukuntywila kubunzulu obuyi-200mm, nto leyo ibaluleke kakhulu kwiimeko zokugcwala kwamanzi ezidolophini apho ubunzulu bamanzi buhlala bungekho nzulu (ngokuqhelekileyo yi-300-500mm ezindleleni). Iimpompo ze-centrifugal zemveli zifuna ubuncinci be-500mm ngaphantsi kwamanzi kwaye ziya ku-cavitate kwiimeko ezinzulu.

I-Q2: Yeyiphi iyunithi yamandla e-hydraulic (HPU) endiyidingayo ukuqhuba le mpompo?

A: Sincoma i-HPU enesantya sokuhamba kwe-40-100 Lpm kunye noxinzelelo lokusebenza lwe-160-200 bar. Ukuba sele unayo i-HPU ekhoyo kwisithuthi sakho sikaxakeka, sithumelele iinkcukacha zakho ze-HPU kwaye siya kuqinisekisa ukuhambelana. Kubathengi abangenayo i-HPU, sinikezela ngeepakethi zeyunithi yamandla ahambelanayo.

I-Q3: Ipompo ingasetyenziswa ngokukhawuleza kangakanani ukusuka ekufikeni kweloli ukuya ekusebenzeni ngokupheleleyo?

A: Abasebenzi ababini banokugqiba ukudibanisa kunye nokusasazwa phakathi kwemizuzu emi-5-8. Impompo inobunzima obumalunga ne-45kg, ayifuni zixhobo zokuphakamisa, kwaye isebenzisa ukudityaniswa kwe-hydraulic ekhutshwa ngokukhawuleza.

I-Q4: Leliphi ixesha eliqhelekileyo lokulungisa kwaye zeziphi iindawo eziguga rhoqo?

A: Phantsi kweemeko zesiqhelo zokusebenza (amanzi acocekileyo okanye amanzi anentlenga ephantsi), kucetyiswa ukulungiswa rhoqo ngeeyure zokusebenza ezingama-500. I-impeller kunye neringi yokunxiba zizinto eziphambili zokunxiba. Sigcina ezi ndawo zisetyenzisiweyo kwisitokhwe kwaye sinokuthumela ngenqanawa kwiiyure ezingama-24 ukuze zilungiswe ngokukhawuleza.

I-Q5: Ngaba le mpompo inokuhamba yome ixesha elifutshane?

A: Hayi. I-motor ye-hydraulic drive inokuqhuba ngokuqhubekayo, kodwa isiphelo sempompo sifuna amanzi okuthambisa kunye nokupholisa kwetywina lomatshini. Ukubaleka ukomisa ngaphezulu kwemizuzwana engama-30 kuya konakalisa isitywina. Sifaka inzwa yokukhusela eyomileyo njengesongezo esikhethiweyo.

Kutheni Khetha Thina?

Sineminyaka yobuchwephesha be-R&D kunye namava okuvelisa kwiimpompo ze-axial flow flow hydraulic, kunye nokusebenza kwemveliso evuthiweyo kwaye ezinzileyo eye yaqinisekiswa ngokubanzi kulawulo lwezandyondyo, ukuhlangulwa okungxamisekileyo, ukunkcenkceshela komhlaba kunye nokuhambisa amanzi, kunye neeprojekthi zokumisa imingxuma yesiseko.

Iimveliso zethu zibonakalisa ukusebenza kakuhle okuphezulu, isantya esikhulu sokuqukuqela, intloko ephezulu, kunye nokuguquguquka okuqinileyo, ukuxhasa zombini iinkqubo zehydraulic ezisisigxina kunye neselfowuni. Kulula ukuzisebenzisa, ukugcina, kwaye zithembeke kakhulu kwiimeko zokusebenza ezinzima.

Sinikezela ngezisombululo ezilungiselelwe ngokweemeko zakho zokusebenza, kunye nothethwano olubanzi lwangaphambi kokuthengisa kunye nenkonzo yasemva kokuthengisa, ukuqinisekisa ukusebenza okuzinzileyo kunye nokusetyenziswa okungenaxhala kuwo wonke umjikelo wobomi bemveliso.

Amava eProjekthi

1. I-Inner Mongolia Emergency Management Bureau – uMjelo woLawulo lweZikhukula kaMasipala (2025)

Imeko: Ukuzaliswa kwamanzi ezidolophini emva kokuna kwemvula enkulu, iindlela ezininzi eziphantsi kwamanzi, iimpompo zombhobho zesiqhelo azikwazi ukuqhubeka ngenxa yobunzulu bamanzi.

Isisombululo: Kusasazwe iiyunithi ezi-4 zeempompo zethu ze-hydraulic axial flow (500m³/h nganye) ezineetreyila ezihambayo zeHPU

Isiphumo: I-1.2km yendlela ekhukulisekileyo ikhutshwe phakathi kweeyure ezi-6, ukubuyisela ukuhamba kwezithuthi. Iimpompo ziqhube ngokuqhubekayo iiyure ezingama-36 ngaphandle kwexesha lokuphumla

2. UGunyaziwe weMijelo kaMasipala waseJiangsu – uThintelo lweZikhukula zegaraji eNgaphantsi komhlaba (2024)

Imeko: 3 amanqanaba okupaka angaphantsi komhlaba kudederhu lweevenkile, ubunzulu bamanzi bufikelele kwi-1.8m emva kwesaqhwithi, iimpompo zokuhambisa amanzi ezizinzileyo aziphumelelanga ngenxa yokumka kombane.

Isisombululo: Iimpompo ezimbini ze-hydraulic axial flow flowing eziqhutywa yi-diesel HPUs, zifakwe ngokungena kwizinyuko

Isiphumo: Inqanaba lamanzi lehle laya kutsho kwi-0.3m kwiiyure ezi-4.5. Zonke izithuthi ezipakiweyo kunye nezitishi zombane ezikwinqanaba leB1 ezikhuselweyo

3. INdawo yoLwakhiwo lweZiseko zoLwakhiwo – iSiseko soMbindi wokuSetywa kwamanzi (2024)

Imeko: indawo yokwemba ubunzulu obuyi-8m, ukungena kwamanzi aphantsi komhlaba kugqithise umthamo weempompo zombane ezintywiliselwayo, indawo ibingenawo umbane wesigaba esi-3

Isisombululo: Impompo ye-axial flow yeHydraulic enikwa amandla yi-HPU yedizili, enethumbu lokufunxa eliguquguqukayo elibekwe kwi-pit sump.

Isiphumo: Ukugcinwa komgangatho wamanzi ungaphantsi komhlaba wokusebenza kangangeenyanga ezi-3 zesigaba sokwakha isiseko
